Ship it Faster 🚀 Android CI/CD with GitHub Actions

About this codelab

Last Updated: November 24, 2025

Author: Ali Mansour

Continuous Integration (CI) is a fundamental practice in modern software development. For an Android app like "My-Tasks," a CI workflow can automatically build and test your code every time you open a pull request, ensuring that new changes don't break existing functionality.

This codelab will guide you through completing a "skeleton" GitHub Actions workflow file. You will implement the TODO items to build a complete, functioning CI pipeline.

The application we are working on named My Tasks

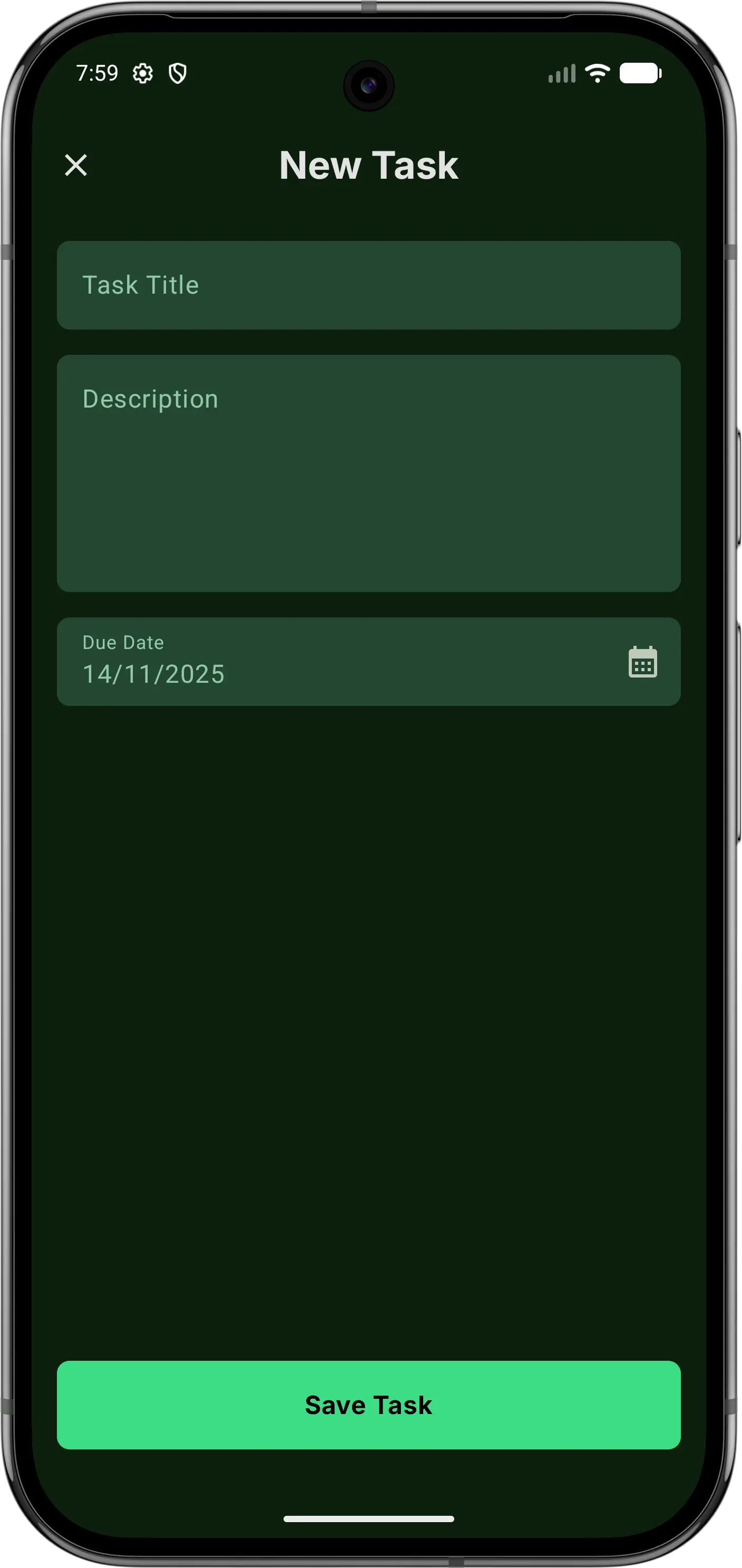

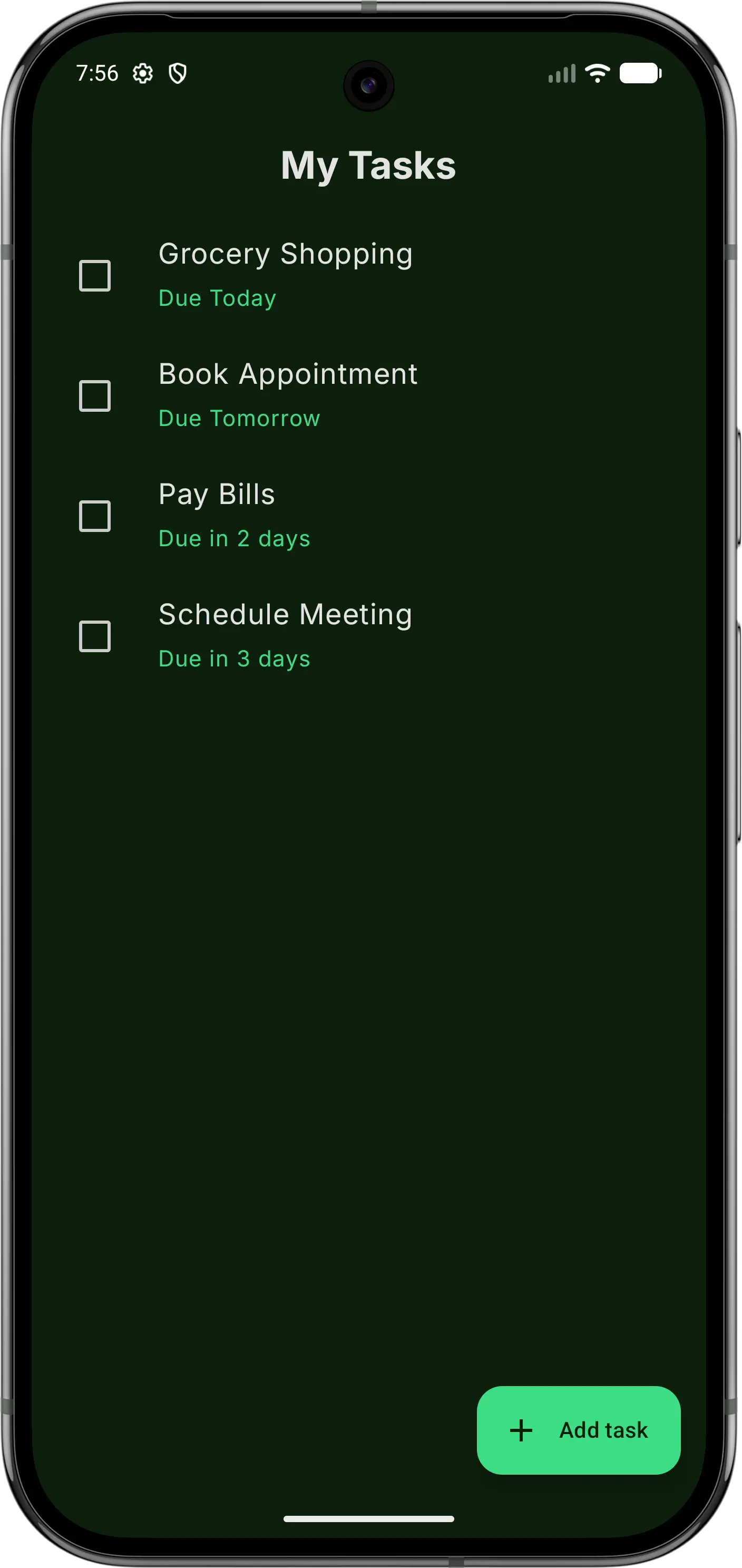

Screenshot 1 Screenshot 2

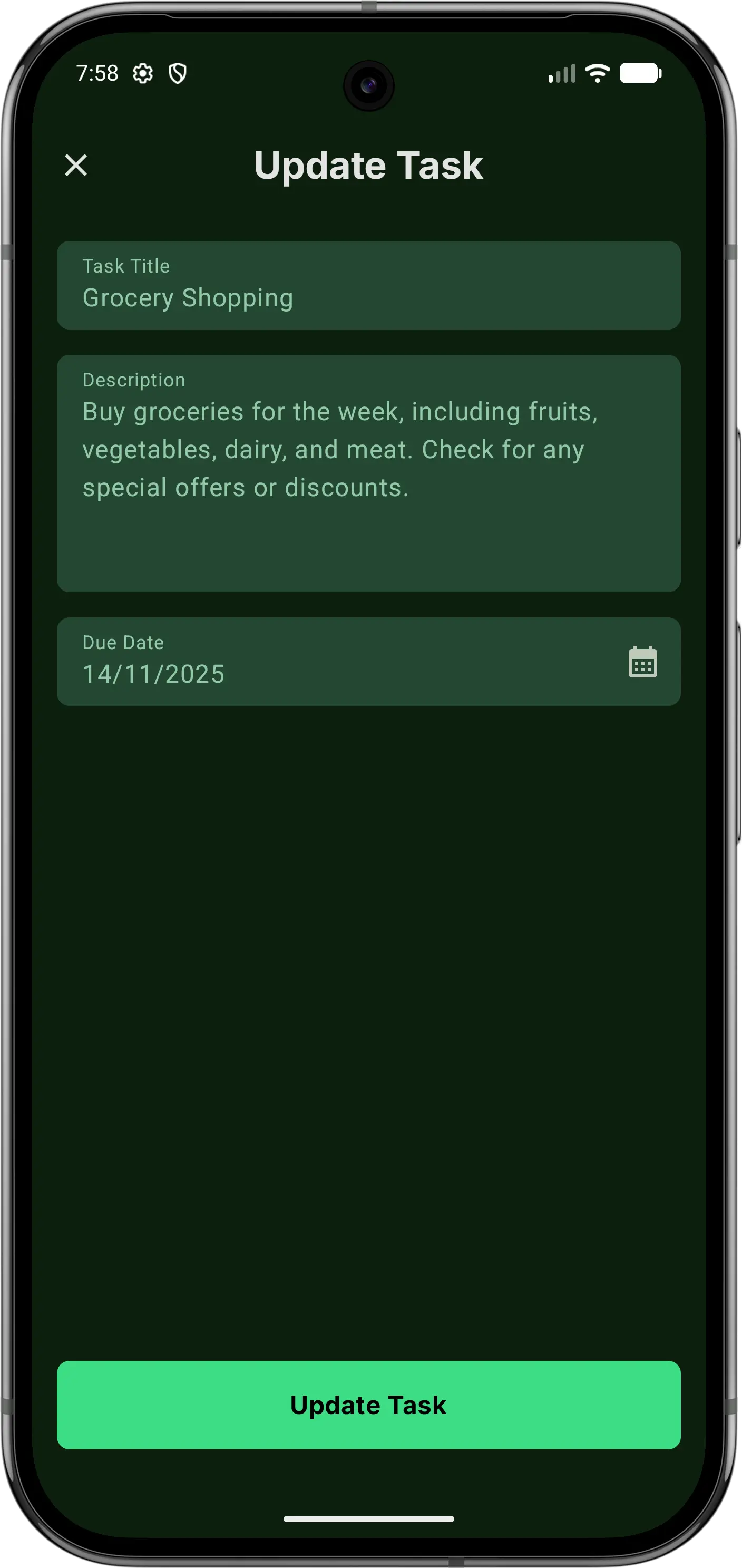

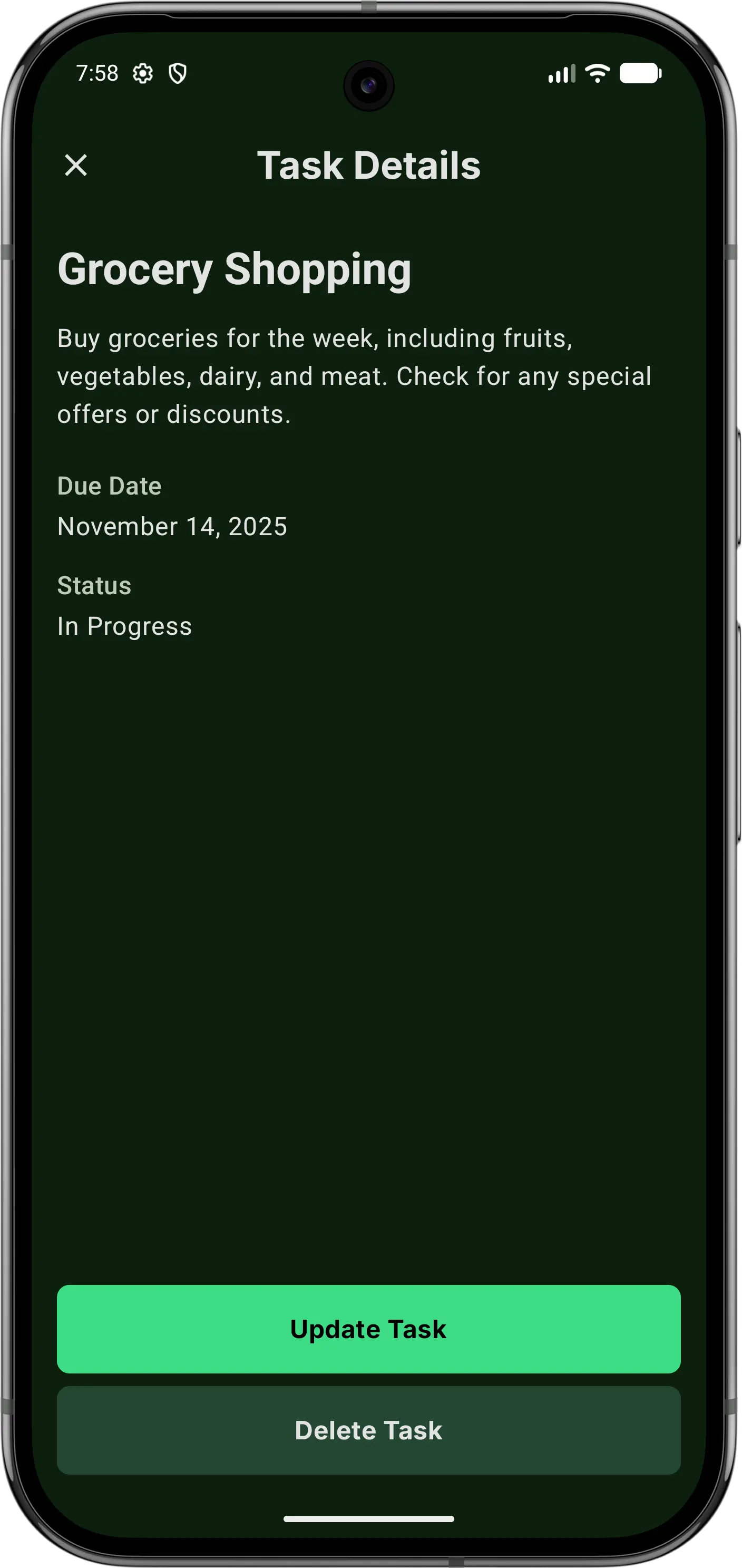

Screenshot 3 Screenshot 4

📌 What you'll build

A complete GitHub Actions workflow (.github/workflows/pull_request.yml).
A pipeline that automatically:
1. Validates the branch name for a pull request.
2. Runs all unit tests for the My-Tasks app.
Job dependencies (validate → build → test).

🎯 What You'll Learn

How to trigger a workflow on pull_request to a specific branch.
How to set the runs-on property to select a job runner.
How to create job dependencies using needs.
How to use standard actions like actions/checkout and actions/setup-java.
How to grant permissions and run Gradle commands in a workflow.

🧰 What you'll need

Basic Android + Git knowledge.
A GitHub account.
Your My-Tasks repository: https://github.com/dev-ali-mansour/My-Tasks.
The starter branch checked out.
Android Studio for to complete tasks.

Before we begin, let's get your environment ready.

1. Clone the repository

You have two options here:

A) Fork the repository (for contributors)

If you want to contribute to the repository or set up your own version with CI/CD:

Click the Fork button at the top right of this repository
Clone your forked repository:

git clone https://github.com/YOUR_USERNAME/My-Tasks.git
cd My-Tasks

Setting up GitHub Secrets

To enable the automated workflows (Pull Request checks and Google Play deployment), you need to configure the following secrets in your repository settings:

Go to your forked repository on GitHub
Navigate to Settings → Secrets and variables → Actions
Click New repository secret and add each of the following:

Required Secrets for Release Workflow:

Secret Name	Description	How to Get It
`KEYSTORE_PASSWORD`	Password for your Android keystore	The password you set when creating your keystore
`KEY_ALIAS`	Alias name for your signing key	The alias you used when creating your key
`KEY_PASSWORD`	Password for your signing key	The password you set for your signing key
`ANDROID_KEYSTORE`	Base64-encoded keystore file	Run: `base64 -w 0 your-keystore.jks`
`GOOGLE_PLAY_AUTH_JSON`	Google Play service account JSON	Download from Google Play Console → API access

Creating an Android Keystore (if you don't have one):

keytool -genkey -v -keystore release-key.jks -keyalg RSA -keysize 2048 -validity 10000 -alias your-key-alias

Encoding the Keystore for GitHub Secrets:

base64 -w 0 release-key.jks > keystore-base64.txt
# Copy the content of keystore-base64.txt and paste it as ANDROID_KEYSTORE secret

Setting up Google Play Service Account:

Follow this tutorial to create a Google Play service account
Download the JSON key file
Copy the entire JSON content and paste it as GOOGLE_PLAY_AUTH_JSON secret

Note: The release workflow will only trigger when you push a tag (e.g., v1.0.0). The pull request workflow runs automatically on PRs to main or develop branches.

B) Clone the repository (Simple setup)

If you just want to practice this codelab without contributing to the repository:

git clone https://github.com/dev-ali-mansour/My-Tasks.git
cd My-Tasks

3. Configure Java

On Linux, if you have JDK 21 installed at /usr/lib/jvm/java-21-openjdk:

export JAVA_HOME=/usr/lib/jvm/java-21-openjdk
export PATH="$JAVA_HOME/bin:$PATH"
java -version

You should see a Java 21 version.

On macOS, If you installed JDK 21 using Homebrew:

export JAVA_HOME=$(/usr/libexec/java_home -v 21)
export PATH="$JAVA_HOME/bin:$PATH"
java -version

If using Azul Zulu or Oracle JDK:

export JAVA_HOME=/Library/Java/JavaVirtualMachines/zulu-21.jdk/Contents/Home

export JAVA_HOME=/Library/Java/JavaVirtualMachines/zulu-21.jdk/Contents/Home

On macOS, If JDK 21 is installed (e.g., Oracle, Azul, Temurin) To set JAVA_HOME temporarily (PowerShell session only):

$env:JAVA_HOME="C:\Program Files\Java\jdk-21"
$env:Path="$env:JAVA_HOME\bin;$env:Path"
java -version

To set JAVA_HOME permanently:

setx JAVA_HOME "C:\Program Files\Java\jdk-21" /M

Note: ⚠️ Restart PowerShell or your IDE after doing this.

4. Open in Android Studio

File → Open...
Select the My-Tasks folder.
Let Gradle sync and KSP/Room code generation complete.

5. Build and run

From Android Studio:

Select a device or emulator.
Click Run on the app configuration.

From the command line:

./gradlew :app:assembleDebug

The resulting APK will be in app/build/outputs/apk/debug/.

6. Running Tests

Unit tests (JVM):

./gradlew :app:testDebugUnitTest
./gradlew :app:testReleaseUnitTest

This runs unit tests for core use cases, repository implementations, and feature ViewModels like:

HomeViewModelTest
NewTaskViewModelTest
UpdateTaskViewModelTest
TaskDetailsViewModelTest

7. Test coverage (JaCoCo) - Optional

To generate a global JaCoCo coverage report:

./gradlew jacocoTestReport

Open the HTML report:

app/build/reports/jacoco/jacocoTestReport/html/index.html

For per-package and per-class coverage, see the HTML tree under:

app/build/reports/jacoco/html/...

Make sure you are on the starter branch.
In your repository, navigate to the workflow file: .github/workflows/pull_request.yml.

You will see the following content, which includes 7 TODO comments. We will now complete them one by one.

name: Run tests
run-name: Run test - ${{ github.head_ref }}

# TODO: [1] Configure the trigger of this action to only run on pull requests to main or develop

jobs:
  validate_pr_sources:
    # TODO: [2] Configure the runner of this job to the latest Ubuntu version
    steps:
      - name: Validate source branch
        id: source_check
        run: |
          echo "Source branch is: ${{ github.head_ref }}"
          # Only enforce naming rules when PR targets the main branch
          if [[ "${{ github.base_ref }}" == "main" ]]; then
            echo "Validating source branch for PR to main..."
            # Allow only branches matching release/<major>.<minor>.<patch> or hotfix/<major>.<minor>.<patch>
            if [[ "${{ github.head_ref }}" =~ ^(release|hotfix)/[0-9]+\.[0-9]+\.[0-9]+$ ]]; then
              echo "✅ Pull request source is a valid release/hotfix branch."
            else
              echo "::error::❌ PRs to main are only allowed from release/x.y.z or hotfix/x.y.z branches (e.g., release/1.2.3 or hotfix/1.2.3). Got: ${{ github.head_ref }}"
              exit 1
            fi
          else
            echo "Skipping source branch validation because target branch is not main."
          fi


  run-tests:
    # TODO: [3] Configure this job to run after the source branch is validated
    runs-on: ubuntu-latest

    steps:
      # TODO: [4] Checkout the source branch

      # TODO: [5] Setup JAVA 21 and install Gradle

      - name: Cache Gradle files
        uses: actions/cache@v4
        with:
          path: |
            ~/.gradle/caches
            ~/.gradle/wrapper
          key: ${{ runner.os }}-gradle-${{ hashFiles('gradle/wrapper/gradle-wrapper.properties', '**/gradle.lockfile') }}
          restore-keys: |
            ${{ runner.os }}-gradle-

      # TODO: [6] Grant execution permission for the Gradle wrapper file

      # TODO: [7] Run the unit tests

Our first step is to tell GitHub when this workflow should run. We want it to trigger only when a pull request is opened (or updated) against our main branch or develop branch.

✅ Set the workflow trigger

Find TODO [1] and replace it with the on: block.

Replace this:

# TODO: [1] Configure the trigger of this action to only run on pull requests to main or develop

With this:

on:
  pull_request:
    branches:
      - main
      - develop

This YAML structure tells GitHub to listen for the pull_request event, but only for pull requests targeting the main branch or develop branch.

Next, we'll configure the validate_pr_sources job. This job has two TODOs.

✅ Set the Job Runner

A "runner" is the virtual machine that will execute your job. We need to specify one. Let's use the latest available Ubuntu runner.

Replace this:

  validate_pr_sources:
    # TODO: [2] Configure the runner of this job to the latest Ubuntu version

With this:

  validate_pr_sources:
    runs-on: ubuntu-latest

This is the main job where we'll check out our code and run our unit tests. This section has five TODOs.

✅ Create a Job Dependency

We don't want to run our tests unless the branch name is valid. To enforce this, we'll make the run-tests job dependent on validate_pr_sources. This is done using the needs: keyword.

Replace this:

  run-tests:
    # TODO: [3] Configure this job to run after the source branch is validated

With this:

  run-tests:
    needs: validate_pr_sources

This creates a dependency graph. The run-tests job will now wait for validate_pr_sources to complete successfully before it starts. If validate_pr_sources fails, run-tests will be skipped.

✅ Checkout the Source Code

The runner is a blank machine. It doesn't have your code on it yet. We must use the official actions/checkout action to pull a copy of our repository onto the runner.

Replace this:

    steps:
      # TODO: [4] Checkout the source branch

With this:

    steps:
      - name: Checkout
        uses: actions/checkout@v4

✅ Setup Java (JDK)

Our Android app requires Java to build. We'll use the actions/setup-java action to install Java 21 (Temurin distribution), which is a common requirement for modern Android builds.

Replace this:

      # TODO: [5] Setup JAVA 21 and install Gradle

With this:

      - name: Setup Java 21
        uses: actions/setup-java@v4
        with:
          distribution: 'temurin'
          java-version: '21'

Note: The existing "Cache Gradle files" step will automatically handle the Gradle installation and caching, so we only need to set up Java.

✅ Grant Execution Permission

The Gradle Wrapper (gradlew) script in our repository needs to have "execute" permissions to run. By default, files checked out from Git might not have this permission.

Replace this:

      # TODO: [6] Grant execution permission for the Gradle wrapper file

With this:

      - name: Grant execute permission for gradlew
        run: chmod +x ./gradlew

✅ Run Unit Tests

Finally, it's time to run the tests! We'll use the gradlew script we just made executable to run the standard test task. This will execute all unit tests in the project.

Replace this:

      # TODO: [7] Run the unit tests

With this:

      - name: Run unit tests
        run: ./gradlew test

You've successfully built a complete GitHub Actions CI workflow for your My-Tasks Android app!

Your final pull_request.yml file should look like this:

name: Run tests
run-name: Run test - ${{ github.head_ref }}

on:
  pull_request:
    branches:
      - main
      - develop

jobs:
  validate_pr_sources:
    runs-on: ubuntu-latest
    steps:
      - name: Validate source branch
        id: source_check
        run: |
          echo "Source branch is: ${{ github.head_ref }}"
          # Only enforce naming rules when PR targets the main branch
          if [[ "${{ github.base_ref }}" == "main" ]]; then
            echo "Validating source branch for PR to main..."
            # Allow only branches matching release/<major>.<minor>.<patch> or hotfix/<major>.<minor>.<patch>
            if [[ "${{ github.head_ref }}" =~ ^(release|hotfix)/[0-9]+\.[0-9]+\.[0-9]+$ ]]; then
              echo "✅ Pull request source is a valid release/hotfix branch."
            else
              echo "::error::❌ PRs to main are only allowed from release/x.y.z or hotfix/x.y.z branches (e.g., release/1.2.3 or hotfix/1.2.3). Got: ${{ github.head_ref }}"
              exit 1
            fi
          else
            echo "Skipping source branch validation because target branch is not main."
          fi

  run-tests:
    needs: validate_pr_sources
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0

      - name: Setup JDK 21
        uses: actions/setup-java@v4
        with:
          distribution: 'temurin'
          java-version: 21

      - name: Cache Gradle files
        uses: actions/cache@v4
        with:
          path: |
            ~/.gradle/caches
            ~/.gradle/wrapper
          key: ${{ runner.os }}-gradle-${{ hashFiles('gradle/wrapper/gradle-wrapper.properties', '**/gradle.lockfile') }}
          restore-keys: |
            ${{ runner.os }}-gradle-

      - name: Grant execution permission for gradlew
        run: chmod +x gradlew

      - name: Run Unit Tests
        run: ./gradlew test

Verify Your Work

Commit your changes to the pull_request.yml file on the starter branch (or a new feature branch, e.g., feature/ci-workflow).
Open a new pull request from your branch to main.
Go to the Actions tab in your repository. You should see your "Run tests" workflow running.
Click on the workflow to see the jobs. validate_pr_sources will run first, followed by run-tests.

What's Next?

Explore the release.yml workflow file in the project. It has been built to trigger on pushing tag starts with v, then it starts running test, bumping the version, generating signed bundle, and upload it to Google Play.
Add a step to generate test reports using Java Code Covering plugin(Jacoco).
Add a step to upload test reports as artifacts.
Add a step to validate test coverage threshold.
Create another job to run Android instrumented tests (androidTest) on an emulator.
